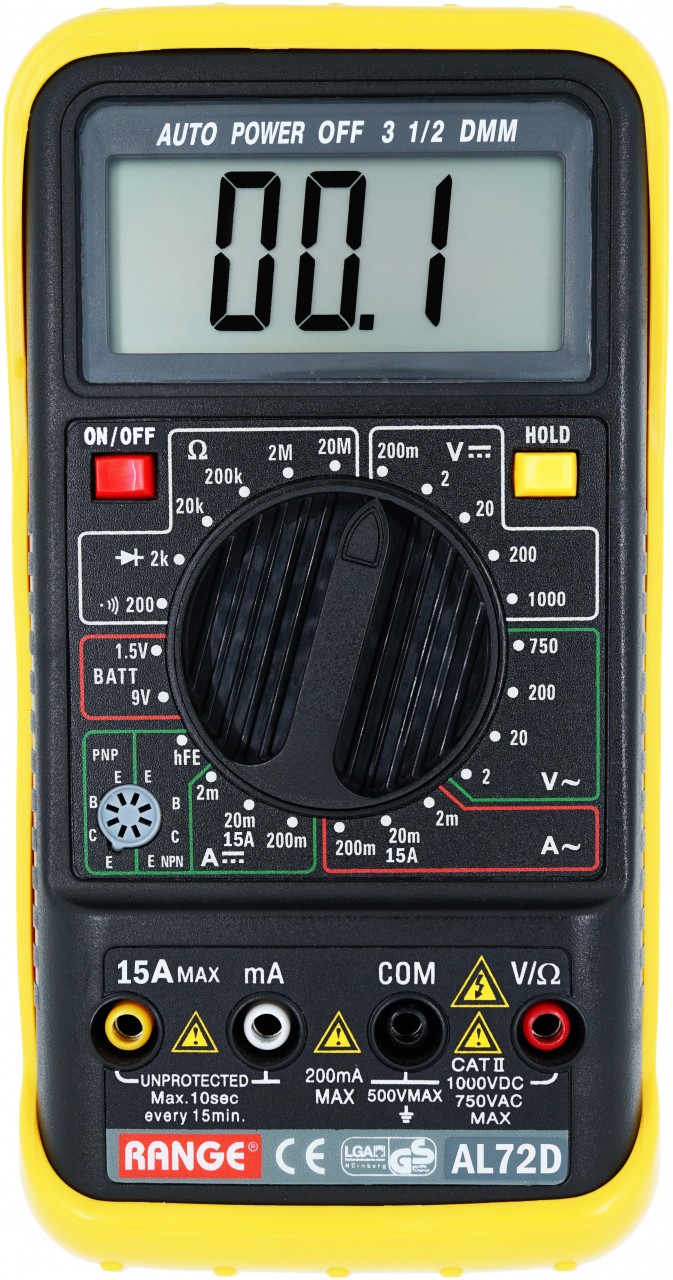

AL72D

Image 1
  • Image 1
Availability:
For general enquiries please contact us
Bookmark and Share

Description

ce.jpgemc-lvd.jpgrohs.bmpsgs-logo.pngiec61010.jpg cat-ii-1000.jpg cat-iii-600.png auto-power-off.jpg gs-zeichen.svg.png

Features

  • Tested & Certified by sgs-logo.png
  • The Latest revision of IEC/EN 61010
  • 2000 counts LCD Display
  • Manual Range
  • DC/AC Voltage
  • DC/AC Current
  • Resistance
  • Diode Test
  • Audible Continuity Test
  • Transistor hFE Test
  • Battery Test
  • Data Hold
  • Auto Power Off
  • Low Battery Indication
  • Overload Protection
  • Product Size: 165 x 85 x 37 mm
  • Product Net Weight: 215g

    • Specification

    Specifications Range Best Accuracy
    DC Voltage 200mV/2V/20V/200V ±(0.5%+1)
    1000V ±(0.8%+2)
    AC Voltage 2V/20V/200V ±(0.8%+3)
    750V ±(1.2%+3)
    Resistance 200Ω ±(0.8%+3)
    2KΩ/20KΩ/200KΩ/2MΩ ±(0.8%+1)
    20MΩ ±(1.0%+2)
    DC Current 2mA/20mA ±(0.8%+1)
    200mA ±(1.2%+2)
    20A ±(2.0%+5)
    AC Current 2mA/20mA ±(1.2%+3)
    200mA ±(2.0%+3)
    20A ±(3.0%+7)

    Supplied Accessories
