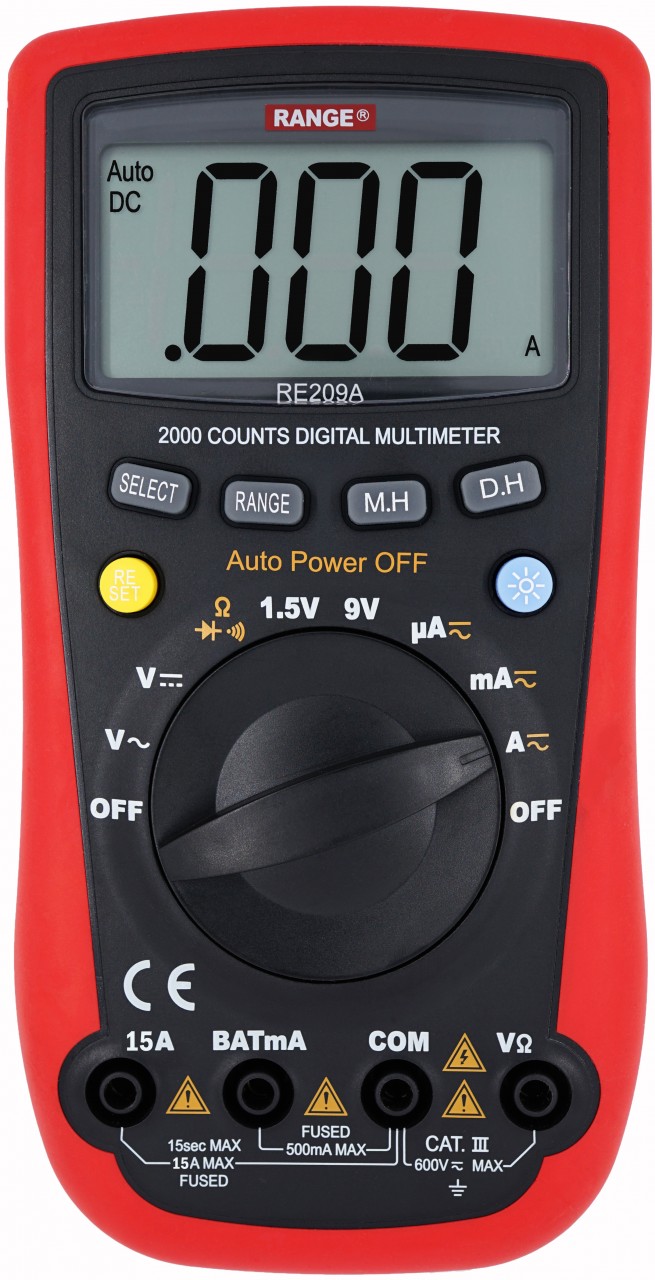

RE209A

Image 1
  • Image 1
  • Image 2
Availability:
For general enquiries please contact us
Bookmark and Share

Description

ce.jpgemc-lvd.jpgrohs.bmpiec61010.jpg cat-ii-1000.jpg cat-iii-600.pngbacklighticon.jpgauto-power-off.jpg

Features

  • 2000 counts LCD Display
  • Auto Range & Manual Range
  • DC/AC Voltage
  • DC/AC Current
  • Resistance
  • Diode Test
  • Audible Continuity Test
  • Battery Test
  • Data Hold
  • Max Hold
  • Back Light
  • Auto Power Off
  • Low Battery Indication
  • Overload Protection
  • 15A
  • Product Size: 177 x 92 x 40 mm
  • Product Net Weight: 320g

Specification

Specifications Range Best Accuracy
DC Voltage 200mV/2V/20V/200V ±(0.5%+2)
600V ±(0.8%+2)
AC Voltage 2V/20V/200V ±(0.8%+3)
600V ±(1.2%+3)
Resistance 200Ω ±(1.0%+1)
2KΩ/20KΩ/200KΩ/2MΩ ±(1.0%+2)
20MΩ ±(1.5%+3)
DC Current 200μA/2mA/20mA/200mA ±(1.2%+2)
2A/15A ±(2.0%+3)
AC Current 200μA/2mA/20mA/200mA ±(1.5%+3)
2A/15A ±(2.5%+5)

Supplied Accessories
