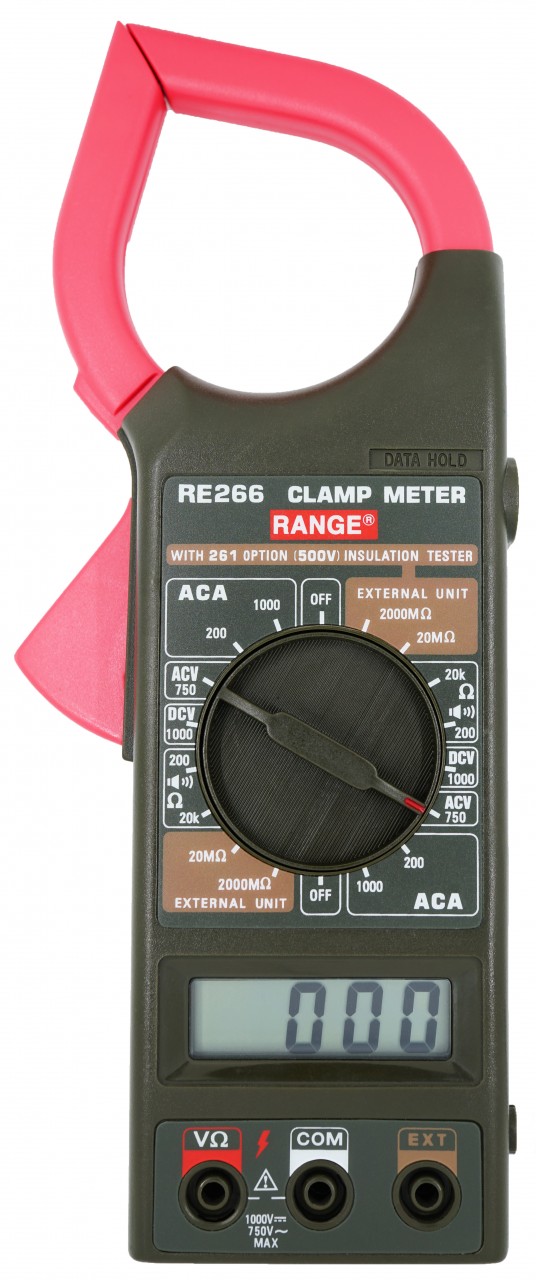

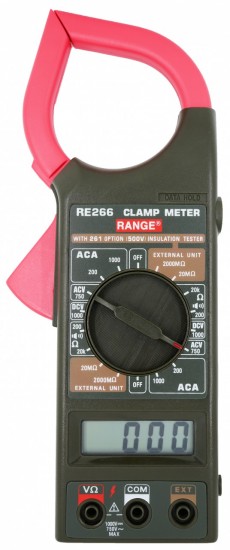

RE266

Image 1
  • Image 1
Availability:
For general enquiries please contact us
Bookmark and Share

Description


Features

  • 2000 counts LCD Display
  • Manual Range
  • Test AC / DC Voltage and AC Current
  • Resistance
  • Audible continuity Test
  • Insulation Test (with 261 option)
  • Data Hold
  • Overload Protection
  • Product Size: 230 x 94 x 40 mm
  • Product Net Weight: 265g

Specification

Specifications Range Best Accuracy
DC Voltage 200mV/2V/20V/200V ±(0.5%+2)
1000V ±(0.8%+2)
AC Voltage 200V/750V ±(1.0%+4)
Resistance 200Ω ±(1.0%+3)
2KΩ/20KΩ ±(0.8%+2)
AC Current 200A ±(2.0%+5)
1000A ≦800A ±(2.0%+5)
＞800A ±(3.0%+5)
Insulation 20MΩ ±(2.0%+2)
2000MΩ ≦500A ±(4.0%+2)
＞500A ±(5.0%+2)

Supplied Accessories

.
  • Battery
  • Starter Guide and Operation Guide
