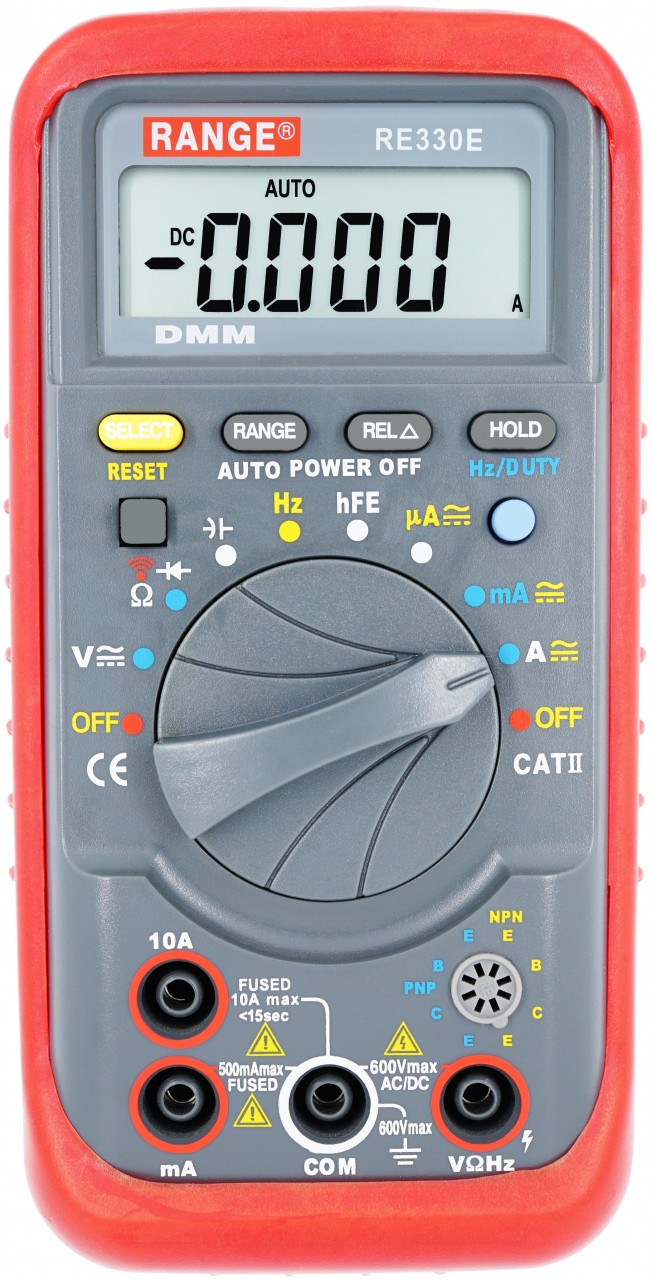

RE330E
Availability:
For general enquiries please contact us
Description
Features
- 4000 counts LCD Display
- Auto Range & Manual Range
- DC / AC Voltage
- DC / AC Current
- Resistance
- Diode Test
- Audible Continuity Test
- Transistor hFE Test
- Capacitance
- Frequency
- Duty Cycle
- Data Hold
- Relative Measurement
- Auto Power Off
- Low Battery Indication
- Overload Protection
Specification
| Specifications | Range | Best Accuracy |
| DC Voltage | 400mV | ±(0.5%+1) |
| 4V/40V/400V/600V | ±(0.8%+1) | |
| AC Voltage | 4V/40V/400V/600V | ±(1.0%+2) |
| Resistance | 400Ω/4KΩ/40KΩ/400KΩ/4MΩ | ±(1.0%+2) |
| 40MΩ | ±(1.2%+2) | |
| DC Current | 400µA/4mA | ±(1.2%+2) |
| 40mA/400mA | ±(1.5%+2) | |
| 4A/10A | ±(1.8%+3) | |
| AC Current | 400µA/4mA | ±(1.2%+2) |
| 40mA/400mA | ±(1.5%+2) | |
| 4A/10A | ±(1.8%+3) | |
| Capacitance | 4nF | ±(5.0%+10) |
| 40nF/400nF/4µF/40µF | ±(3.5%+5) | |
| 100µF | ±(4.0%+1) | |
| Frequency | 10Hz/100Hz/1KHz/10KHz/ | ±(0.1%+5) |
| 100KHz/1MHz/10MHz |
