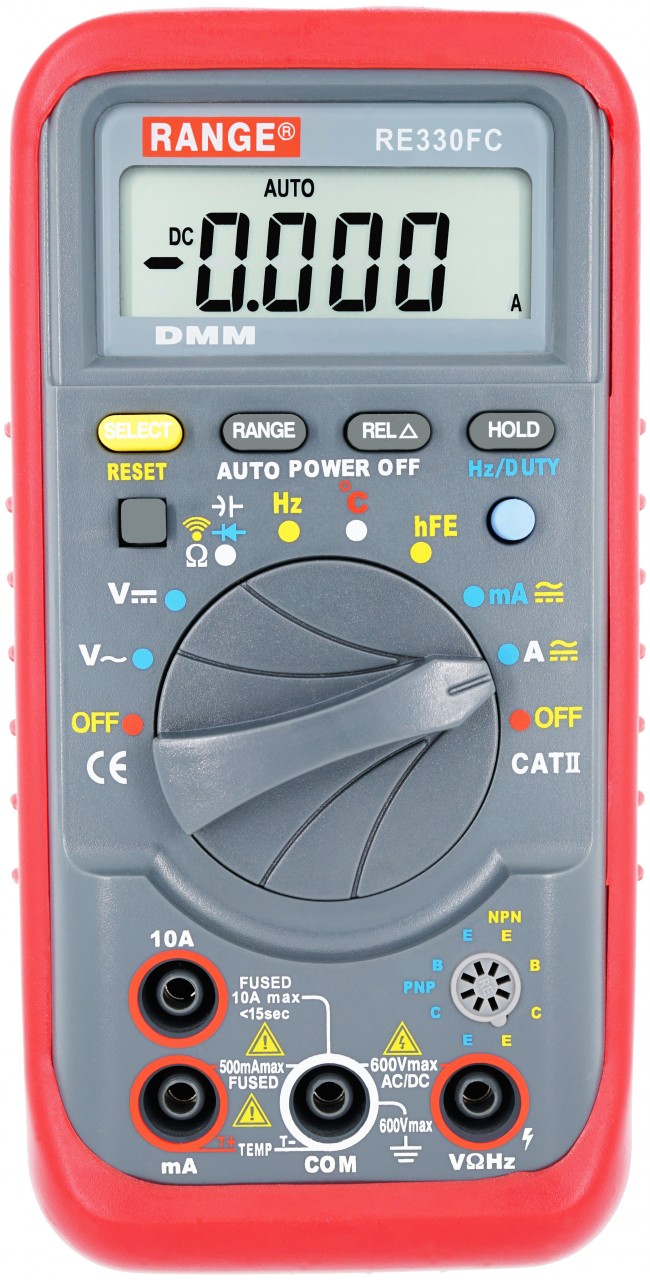

RE330FC

Image 1
  • Image 1
Availability:
For general enquiries please contact us
Bookmark and Share

Description

ce.jpgemc-lvd.jpgrohs.bmpiec61010.jpg cat-ii-600.jpg cat-iii-300.jpg auto-power-off.jpg temperature.png

Features

  • 4000 counts LCD Display
  • Auto Range & Manual Range
  • DC / AC Voltage
  • DC / AC Current
  • Resistance
  • Diode Test
  • Audible Continuity Test
  • Transistor hFE Test
  • Capacitance
  • Frequency
  • Temperature
  • Duty Cycle
  • Data Hold
  • Relative Measurement
  • Auto Power Off
  • Low Battery Indication
  • Overload Protection

Specification

Specifications Range Best Accuracy
DC Voltage 4V/40V/400V/600V ±(0.8%+1)
AC Voltage 4V/40V/400V/600V ±(1.0%+2)
Resistance 400Ω/4KΩ/40KΩ/400KΩ/4MΩ ±(1.0%+2)
40MΩ ±(1.2%+2)
DC Current 40mA/400mA ±(1.5%+2)
4A/10A ±(1.8%+3)
AC Current 40mA/400mA ±(1.5%+2)
4A/10A ±(1.8%+3)
Capacitance 4nF ±(5.0%+10)
40nF/400nF/4µF/40µF ±(3.5%+5)
100µF ±(4.0%+1)
Frequency 10Hz/100Hz/1KHz/10KHz/ ±(0.1%+5)
100KHz/1MHz/10MHz
Temperature -20℃ ~ 0℃ ±(1.5%+3)
0℃ ~ 300℃ ±(1.0%+3)
300℃ ~ 1000℃ ±(1.5%+5)

Supplied Accessories
