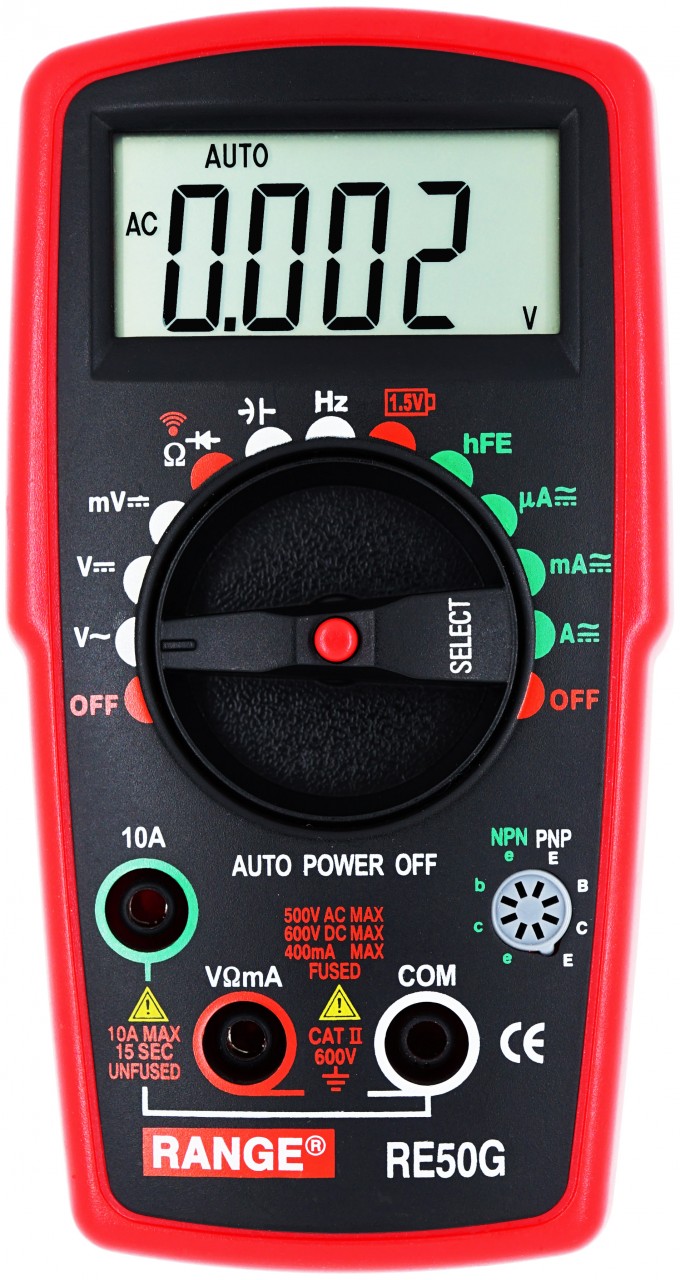

RE50G
Availability:
For general enquiries please contact us
Description
Features
- 4000 counts LCD Display
- Auto Range and Manual Range
- DC/AC Voltage
- DC/AC Current
- Resistance
- Diode Test
- Audible Continuity Test
- Transistor hFE test
- Battery Test
- Capacitance
- Frequency
- Auto Power Off
- Low Battery Indication
- Overload Protection
- Product Size: 138 x 74 x 36 mm
- Product Net Weight: 140g
Specification
| Specifications | Range | Best Accuracy |
| DC Voltage | 400mV/4V/40V/400V | ±(0.5%+2) |
| 600V | ±(0.8%+2) | |
| AC Voltage | 4V/40V/400V | ±(0.8%+3) |
| 600V | ±(1.2%+3) | |
| Resistance | 400Ω | ±(1.0%+3) |
| 4KΩ/40KΩ/400KΩ/4MΩ | ±(1.0%+2) | |
| 40MΩ | ±(1.5%+3) | |
| DC Current | 400µA/4000µA/40mA/400mA | ±(1.2%+2) |
| 4A/10A | ±(2.0%+3) | |
| AC Current | 400µA/4000µA/40mA/400mA | ±(1.5%+3) |
| 4A/10A | ±(2.5%+5) | |
| Capacitance | 40nF | ±(3.0%+10) |
| 400nF/4µF/40µF | ±(2.5%+5) | |
| 100µF | ±(5.0%+10) | |
| Frequency | 10Hz/100Hz/1000Hz/10KHz/100KHz/1000KHz/10MHz | ±(0.1%+5) |
| Battery Test | 1.5V | ±(5.0%+5) |
