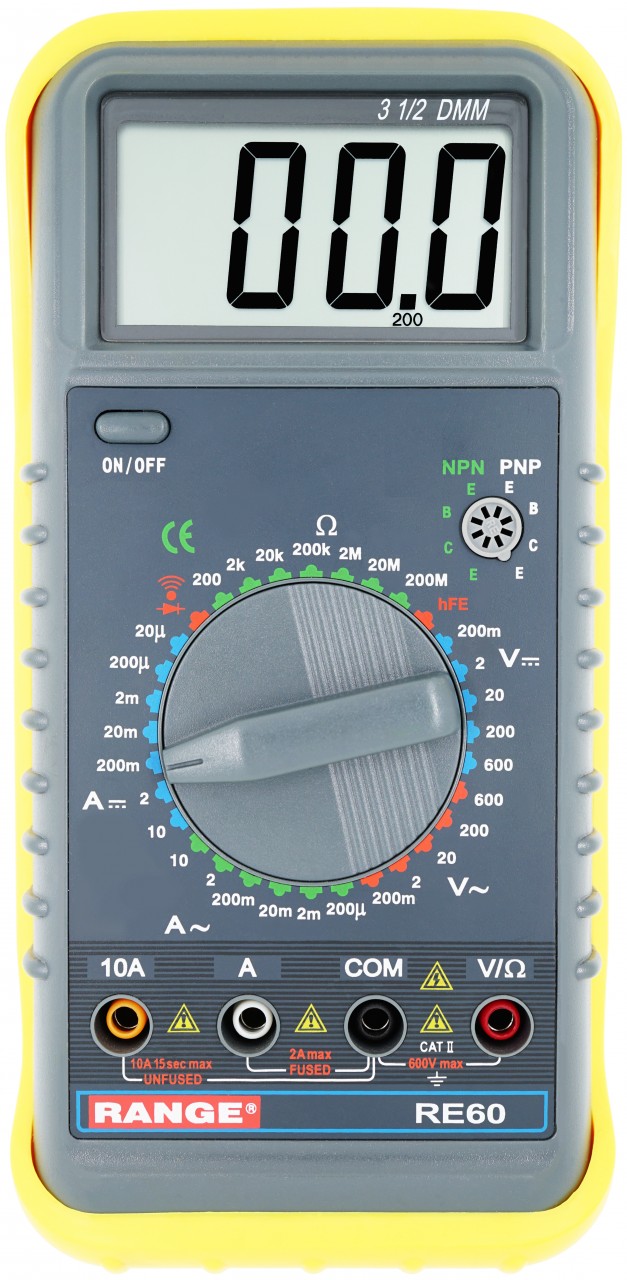

RE60 DMM
Availability:
For general enquiries please contact us
Description
Features
- 2000 counts LCD Display
- Manual Range
- DC / AC Voltage
- DC / AC Current
- Resistance
- Diode Test
- Audible Continuity Test
- Transistor hFE Test
- Low Battery Indication
- Overload Protection
- Product Size: 189 x 91 x 32 mm
- Product Net Weight: 310g
Specification
| Specifications | Range | Best Accuracy |
| DC Voltage | 200mV/2V/20V/200V | ±(0.5%+1) |
| 600V | ±(0.8%+2) | |
| AC Voltage | 200mV | ±(1.2%+3) |
| 2V/20V/200V | ±(0.8%+3) | |
| 600V | ±(1.2%+3) | |
| Resistance | 200Ω | ±(0.8%+3) |
| 2KΩ/20KΩ/200KΩ/2MΩ | ±(0.8%+1) | |
| 20MΩ | ±(1.0%+2) | |
| 200MΩ | ±[5.0%(rdg-10)+10] | |
| DC Current | 200µA/2mA/20mA | ±(0.8%+1) |
| 200mA/2A | ±(1.5%+1) | |
| 10A | ±(2.0%+5) | |
| AC Current | 200µA | ±(1.8%+3) |
| 2mA/20mA | ±(1.0%+3) | |
| 200mA/2A | ±(1.8%+3) | |
| 10A | ±(3.0%+7) |
