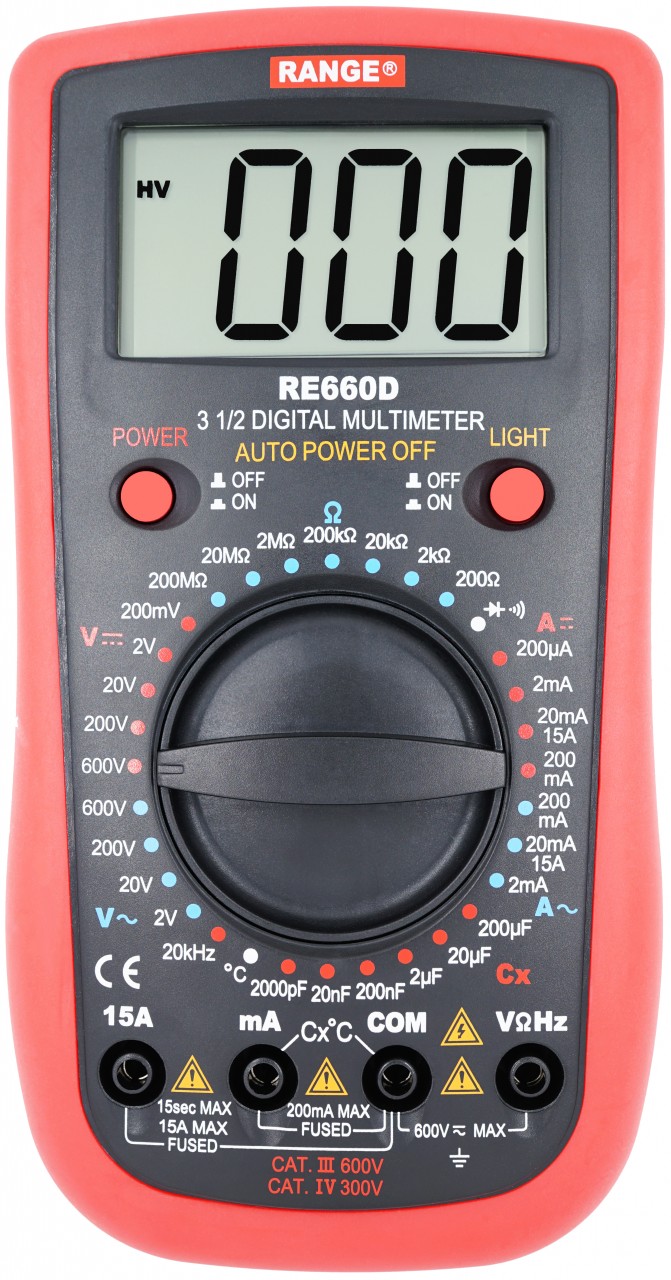

RE660D (Black)

Image 1
  • Image 1
  • Image 2
Availability:
For general enquiries please contact us
Bookmark and Share

Description

ce.jpgemc-lvd.jpgrohs.bmpsgs-logo.png iec61010.jpg cat-ii-1000.jpg cat-iii-600.png cat-iv-300.jpg auto-power-off.jpg backlighticon.jpgtemperature.png

Features

  • 2000 counts
  • Manual Range
  • DC / AC Voltage
  • DC / AC Current
  • Resistance
  • Diode Test
  • Audible Continuity Test
  • Capacitance
  • Frequency
  • Temperature
  • Back Light
  • Auto Power Off
  • Low Battery indication
  • Overload Protection
  • 15A
  • Product Size: 190 x 100 x 40 mm
  • Product Net Weght: 300g

Specification

Specifications Range Best Accuracy
DC Voltage 200mV/2V/20V/200V ±(0.5%+2)
600V ±(0.8%+2)
AC Voltage 2V/20V/200V ±(0.8%+3)
600V ±(1.2%+3)
Resistance 200Ω ±(1.0%+3)
2KΩ/20KΩ/200KΩ/2MΩ ±(1.0%+2)
20MΩ ±(1.5%+3)
200MΩ ±(5.0%+5)
DC Current 200μA/2mA/20mA ±(1.2%+2)
200mA ±(1.5%+2)
15A ±(2.0%+3)
AC Current 2mA/20mA ±(1.5%+3)
200mA ±(2.0%+3)
15A ±(2.5%+5)
Capacitance 2000pF ±(2.5%+10)
20nF/200nF/2µF/20µF ±(2.5%+5)
200µF ±(5.0%+10)
Frequency 20KHz ±(2.0%+5)
Temperature -50~150℃ ± (3℃+1)
150~800℃ ± (3%+1)

Supplied Accessories

　.
