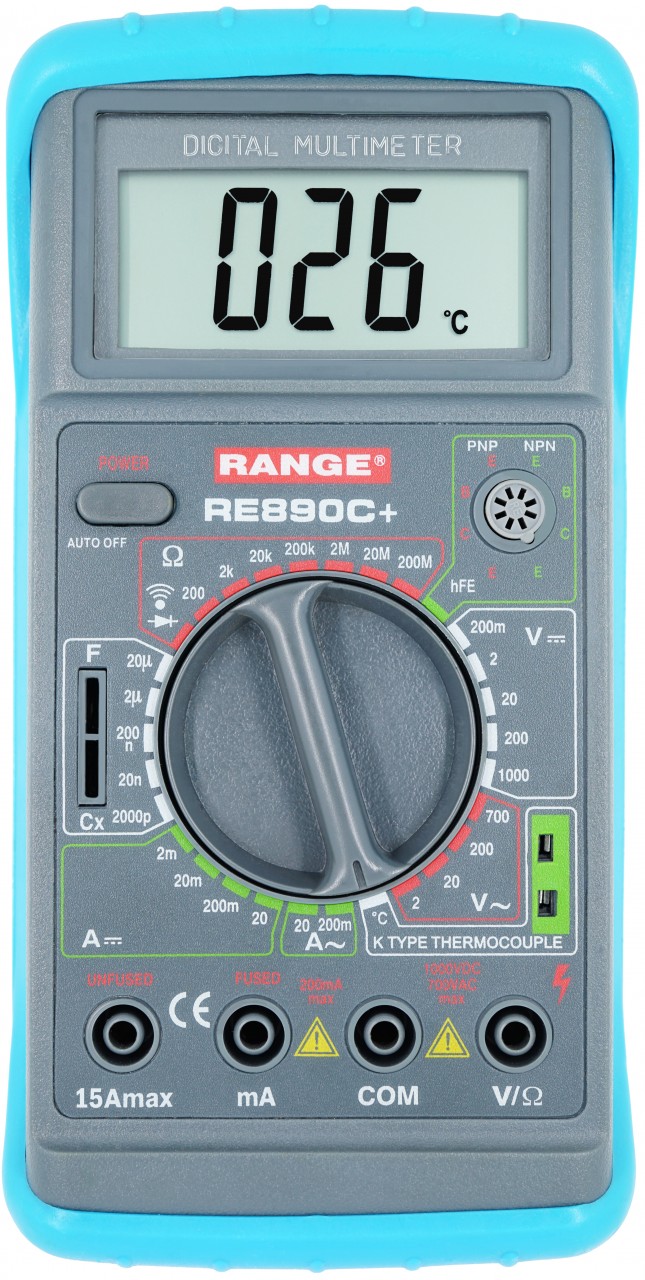

RE890C+

Image 1
  • Image 1
Availability:
For general enquiries please contact us
Bookmark and Share

Description

ce.jpgemc-lvd.jpgrohs.bmpiec61010.jpg cat-ii-1000.jpg cat-iii-600.png auto-power-off.jpg temperature.png

Features

  • 2000 counts LCD Display
  • Manual Range
  • DC/AC Voltage
  • DC/AC Current
  • Resistance
  • Diode Test
  • Audible Continuity Test
  • Transistor hFE Test
  • Capacitance
  • Temperature
  • Auto Power Off
  • Overload Protection
  • 15A
  • Product Size: 175 x 88 x 43mm
  • Product Net Weight: 360g

Specification

Specifications Range Best Accuracy
DC Voltage 200mV/2V/20V/200V ±(0.5%+1)
1000V ±(0.8%+1)
AC Voltage 2V/20V/200V ±(0.8%+3)
700V ±(1.2%+3)
Resistance 200Ω ±(0.8%+3)
2KΩ/20KΩ/200KΩ/2MΩ ±(0.8%+1)
20MΩ ±(1.0%+2)
200MΩ ±5.0% (rdg -10 digits) ± 10
DC Current   200µA/2mA/20mA ±(0.8%+1)
200mA/2A ±(1.2%+1)
15A ±(2.0%+5)
AC Current  200mA ±(2.0%+3)
15A ±(3.0%+7)
Capacitance 2000pF/20nF/200nF/2µF/20µF ±(2.5%+3)
Temperature - 40℃ ~ 400℃ ±(0.75%+3)
400℃ ~ 1000℃ ±(1.5%+15)

Supplied Accessories
