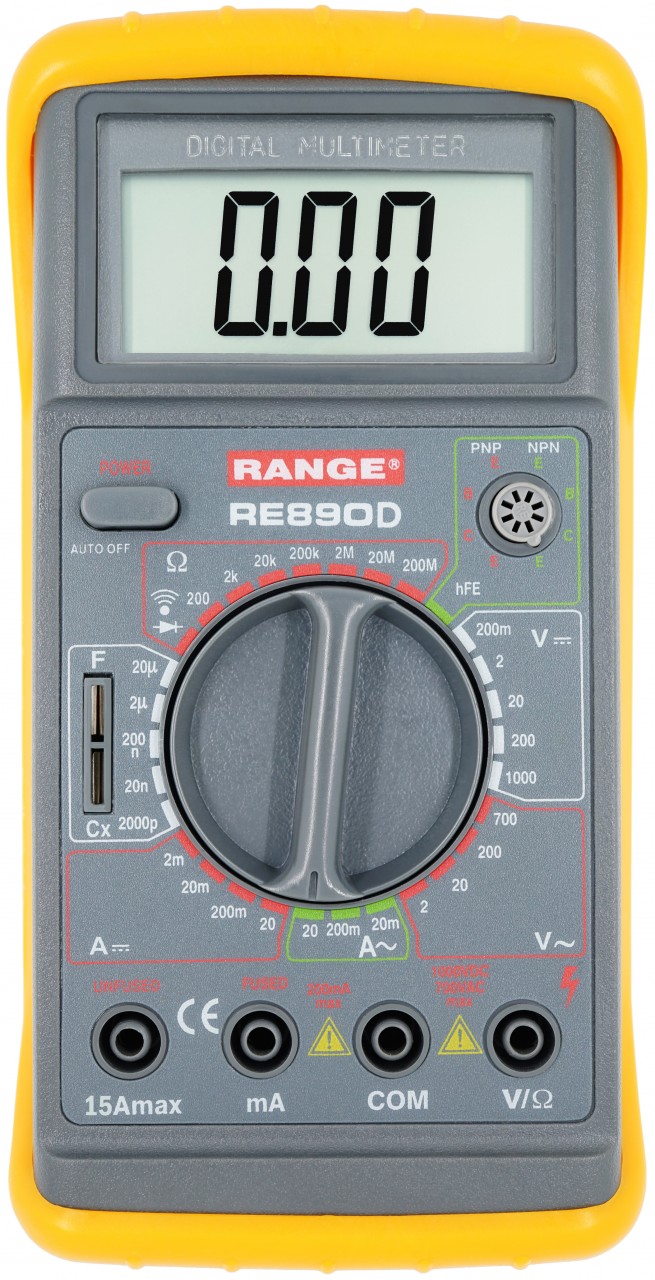

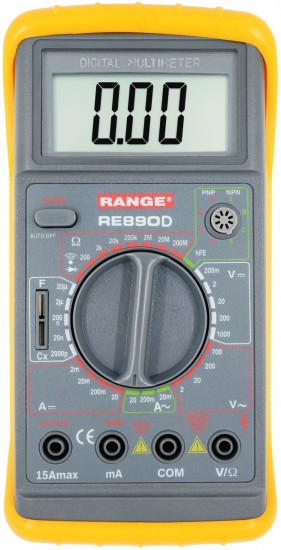

RE890D
Availability:
For general enquiries please contact us
Description
Features
- 2000 counts LCD Display
- Manual Range
- DC/AC Voltage
- DC/AC Current
- Resistance
- Diode Test
- Audible Continuity Test
- Transistor hFE Test
- Capacitance
- Auto Power Off
- Overload Protectiom
- 15A
- Product Size: 175 x 88 x 43mm
- Product Net Weight: 360g
Specification
| Specifications | Range | Best Accuracy |
| DC Voltage | 200mV/2V/20V/200V | ±(0.5%+1) |
| 1000V | ±(0.8%+1) | |
| AC Voltage | 20mV | ±(1.2%+3) |
| 2V/20V/200V | ±(0.8%+3) | |
| 700V | ±(1.2%+3) | |
| Resistance | 200Ω | ±(0.8%+3) |
| 2KΩ/20KΩ/200KΩ/2MΩ | ±(0.8%+1) | |
| 20MΩ | ±(1.0%+2) | |
| 200MΩ | ±5.0% (rdg -10 digits) ± 10 | |
| DC Current | 200µA/2mA/20mA | ±(0.8%+1) |
| 200mA/2A | ±(1.2%+1) | |
| 15A | ±(2.0%+5) | |
| AC Current | 200µA | ±(1.8%+3) |
| 2mA/20mA | ±(1.2%+3) | |
| 200mA/2A | ±(2.0%+3) | |
| 15A | ±(3.0%+7) | |
| Capacitance | 2000pF/20nF/200nF/2µF/20µF | ±(2.5%+3) |
