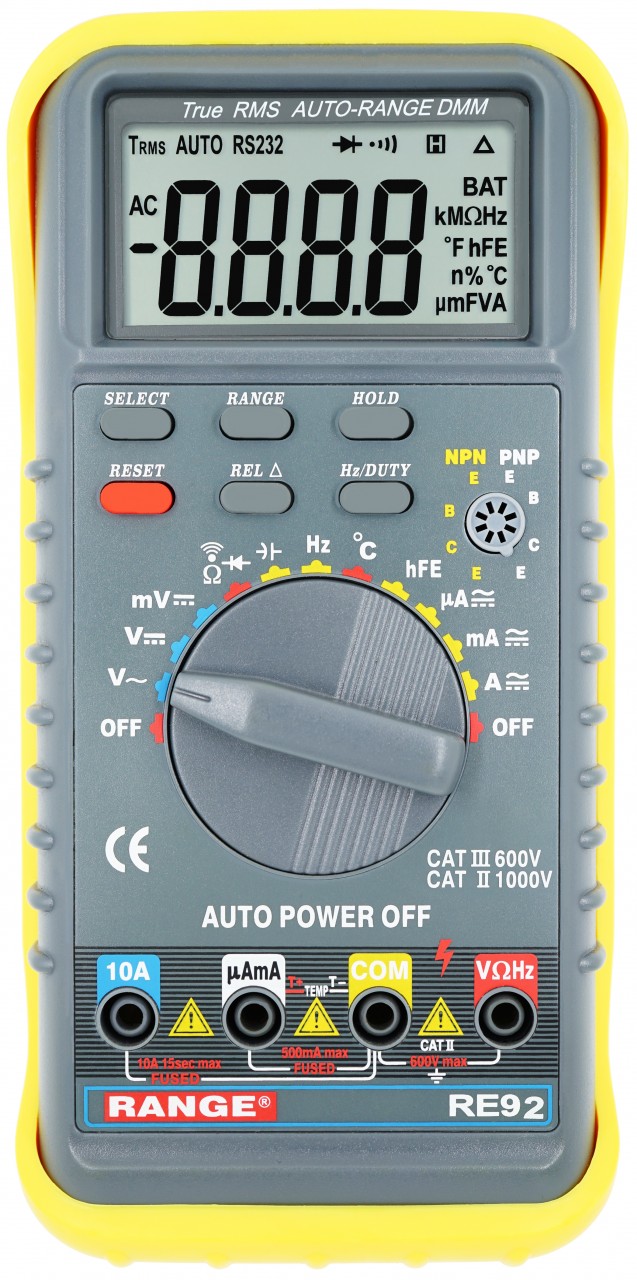

RE92
Availability:
For general enquiries please contact us
Description
Features
- 4000 counts LCD Display
- Auto Range and Manual Range
- DC/AC Voltage
- DC/AC Current
- Resistance
- Diode Test
- Audible Continuity Test
- Transistor hFE Test
- Capacitance
- Frequency
- Temperatuer
- Duty Cycle
- Data Hold
- Relative Measurement
- True RMS
- Auto Power Off
- Low Battery Indication
- Overload Protection
- Product Size: 189 x 91 x 32 mm
- Product Net Weight: 310g
Specification
| Specifications | Range | Best Accuracy |
| DC Voltage | 400mV | ±(0.8%+3) |
| 4V/40V/400V | ±(0.8%+1) | |
| 1000V | ±(1.0%+3) | |
| AC Voltage | 4V/40V/400V | ±(1.0%+5) |
| 750V | ±(1.2%+5) | |
| Resistance | 400Ω | ±(1.2%+2) |
| 4KΩ/40KΩ/400KΩ | ±(1.0%+2) | |
| 4MΩ | ±(1.2%+2) | |
| 40MΩ | ±(1.5%+2) | |
| DC Current | 400µA/4000µA | ±(1.0%+2) |
| 40mA/400mA | ±(1.2%+3) | |
| 4A/10A | ±(1.5%+3) | |
| AC Current | 400µA/4000µA | ±(1.5%+5) |
| 40mA/400mA | ±(2.0%+5) | |
| 4A/10A | ±(1.5%+3) | |
| Capacitance | 4nF | ±(5.0%+10) |
| 40nF/400nF/4µF/40µF | ±(3.5%+5) | |
| 100µF | ±(4.0%+1) | |
| Frequency | 10Hz/100Hz/1KHz/10KHz/ | ±(0.1%+5) |
| 100KHz/1MHz/10MHz | ||
| Temperature | -50℃ ~ 150℃ | ± (3℃+1) |
| 150℃ ~ 800℃ | ± (3.0%+1) |
